PROCESSES

Endless cutting options for any application

We offer a wide range of laser cutting solutions for tubes made of aluminium, iron, steel and other materials to suit all kinds of products and applications.

Tube Laser Cutting
ANY PIPE OR PROFILE

Laser cutting of standard and special profiles and tubes

We can process all types of profiles, pipes and beams with maximum planning and design flexibility. We are proud to offer:
- Loading/unloading of up to 15 m tubes (single unit)
- Laser cutting for 12-160 mm thick beams
- Fiber laser cutting of tubes and profiles up to 355 mm
- Plasma cutting for profiles with a diameter up to 1200 mm
- Material thickness: up to 70 mm for iron; up to 15 mm for stainless steel; up to 8 mm for aluminium, brass and copper.

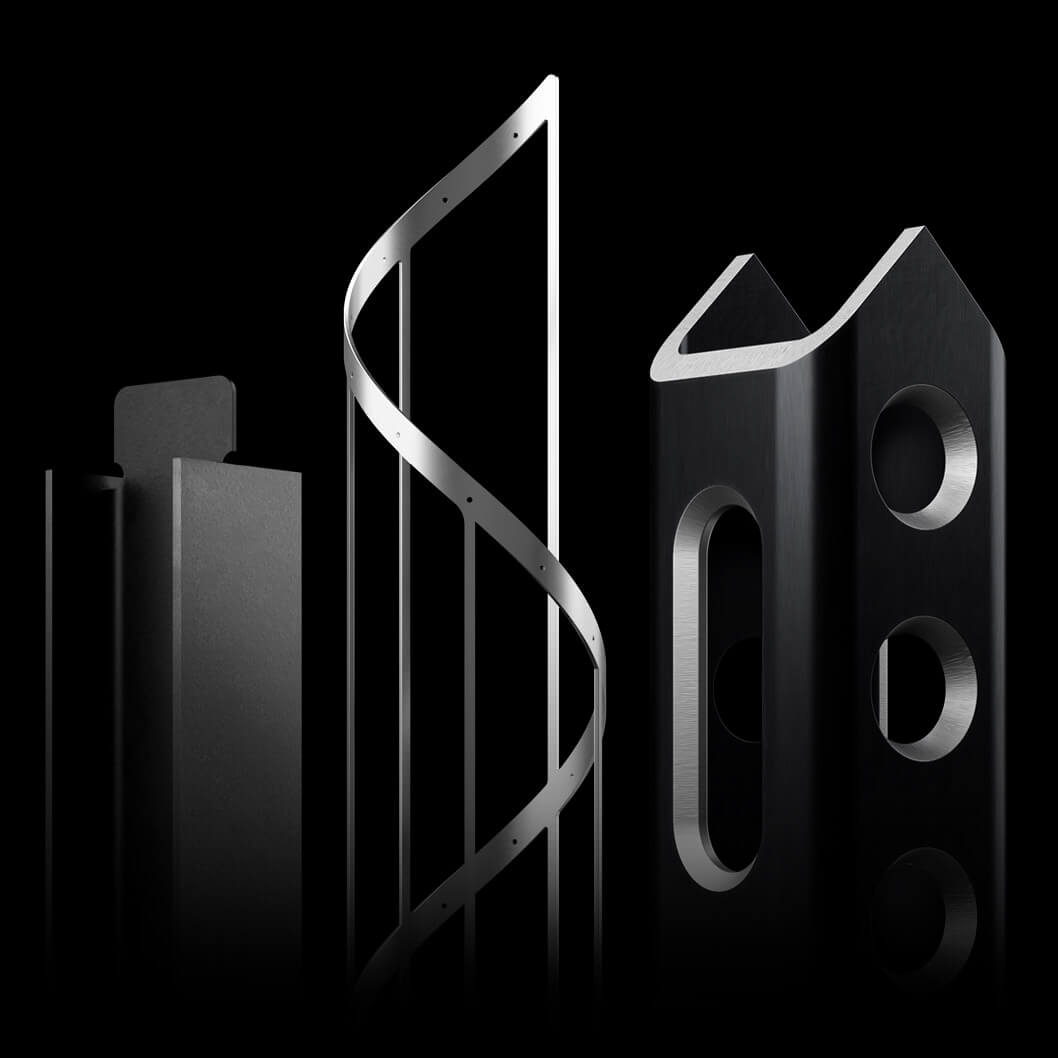

laser tube
tubo tondo

ROUND TUBE

tubo quadro

RECTANGULAR TUBE

tubo ovale

OVAL TUBE

flat bar

FLAT PROFILE

angolare

ANGLE

profilo U

U PROFILE

profilo L

L PROFILE

IPE

HEA/HEB/IPE BEAMS

Special and open-ended profiles

With our state-of-the-art plant and machinery, processing open-ended and special profiles is easily done. We are proud of providing quick and precise processing of special profiles and open-ended beams, with excellent results.

special-profiles-laser-cutting
special-profiles-laser-cutting
special-profiles-laser-cutting
special-profiles-laser-cutting

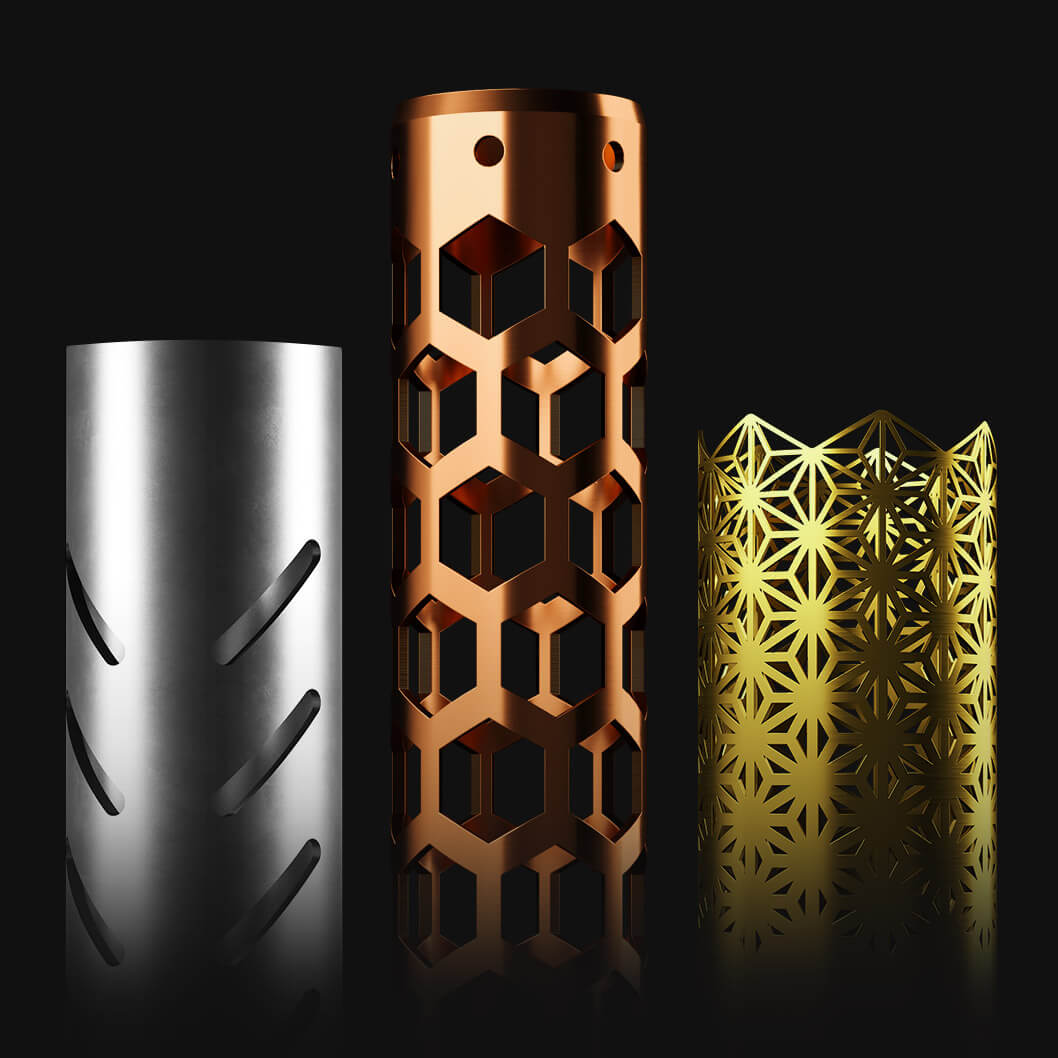

aluminium-copper-brass-laser-cutting
ANY MATERIAL

CO2 and fiber laser cutting

We offer expert laser cutting solutions for profiles, pipes and beams made of aluminium, stainless steel, copper, titanium, iron, brass, Duplex stainless steels or Hardox®. Fiber laser cutting allows us to process materials such as copper, brass and all aluminium alloys. And to ensure superior cutting speed on thin-depth carbon steel and stainless steel. CO2 laser cutting is especially suitable for large thickness tubes.

Iron

IRON

Stainless Steel

STAINLESS STEEL

Aluminium

ALUMINIUM

Brass

BRASS

Copper

COPPER

Duplex

DUPLEX

Titanium

TITANIUM

Hardox

HARDOX®

Benefits of laser cutting: Compared to other techniques – such as plasma cutting, oxy-fuel cutting and mechanical processing – laser cutting ensures top quality results at reduced turnaround times and costs for the processing of pipes and beams made of aluminium, steel and other materials. With laser cutting, you can achieve maximum precision applying a one-step process. Hence, the resulting units are ready for welding or further processing without requiring adjustments.

MATERIALS OPTIMISATION

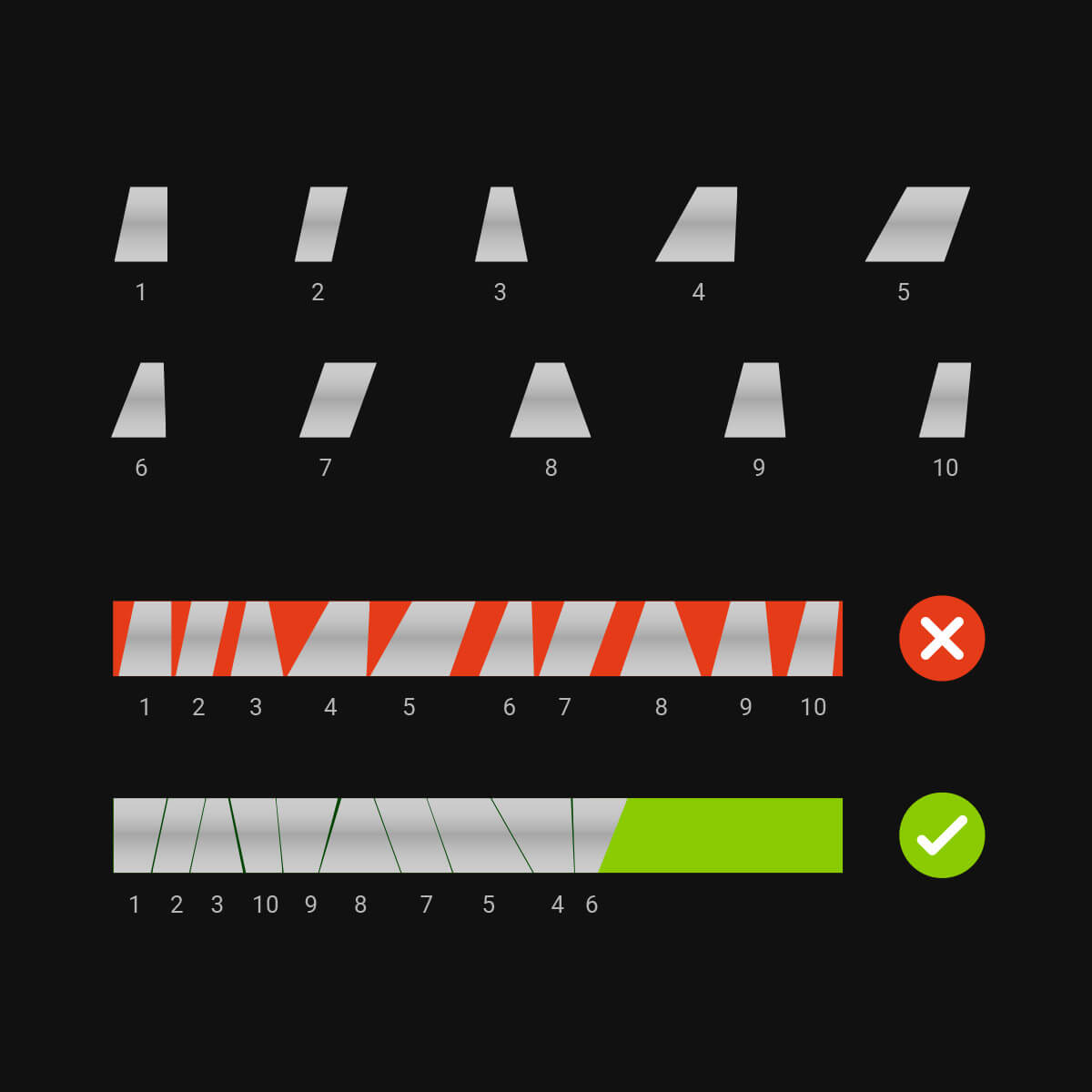

Dynamic nesting

Before processing your order, we assess the required quantities using our nesting (cutting pattern) software. This step optimises material usage by minimising rod-end swarf - saving time and money for both complete deliveries and contract work.

nesting tubilaser
3d laser cutting
REDUCE POST-CUT PROCESSING

3D laser cut

As the cutting head is positioned at an angle to the tube surface, 3D laser cutting allows precise caulking and semi-caulking on pieces that require future welding. No further grinding and polishing required.

PRECISION GUARANTEED

Touch Probe Technology

Dedicated supports placed on the feeding and unloading lines protect the pipe throughout the process, reducing axial deformations when processing high-precision cuts. For out-of-shape tubes and pipes that cannot be handled mechanically due to their thickness, we use a mechanical sensor that detects torsion and centring errors to adjust the cutting pattern as needed to ensure precision.

touch probe technology

ACTIVE TOOLS

Providing unparalleled cutting quality to our customers

Our facilities are equipped with state-of-the-art technology, to provide excellent results when cutting any kind of profile, beam or pipe.

active scan

Active Scan

This optical device prevents positional errors on deformed tubes and rigid pipes that cannot be effectively held by mechanical support rails. Active Scan automatically calculates the adjustments based on tolerance settings.

active piercing

Active Piercing

This function provides quick and precise drilling and piercing of thicker profiles, and ensures high quality results on uneven surfaces.

active tilt

Active Tilt

Cutting head tilting enhances productivity and reduces processing times, especially when processing thin or small beams.

active weld

Active Weld

Active Weld identifies the welding points and adjusts the unit’s orientation accordingly before cutting.

pipe laser cutting machine
EXTRA CARE

Delicate surfaces

Our custom rod-loading system perfected over time allows us to securely process delicate surfaces and avoid most of the usual signs of machining (e.g. smears, mandrel markings or clamping). We laser cut aluminium, polished/satin-finished stainless steel and brass pipes, without compromising the functionality or the aesthetics of the materials.

ROUGH SURFACES MANAGEMENT

Precise cuts on contaminated, rusty or galvanised surfaces

Our bespoke pre-cut system and supporting procedures help us ensure precise cuts with minimum waste on contaminated, galvanised and rusty metal beams and pipes.

Tubilaser cut on rust galvanized
laser cutting of tubolar
CUTTING WASTE

Inside-out quality

Our dedicated aspiration devices eliminate most of the cutting waste and fumes originating from the processing of round tubes and profiles, ensuring a clean surface both inside and out.

GETTING TO KNOW US

Are you looking for an expert, reliable partner for your beam and pipe cutting needs? Get in touch, and we’ll find the best solution for you.

CONTACT US TODAY
